MELTS2.0: Bayes sims of mantle melting

Load the best-fit calibrated MELTS2.0 model and use it Open this code in an executable MyBinder instance (MyBinder links may be slow to load– please be patient!):

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import thermoengine as thermo
from thermoengine import rockychem, redox
import json

import seaborn as sns
from thermoengine import magmaforge
import pandas as pd # a useful data analysis package

Load the MELTS2 parameters & draw from uncertainties

NDRAW = 5

filenm = "model_fit.json"
# filenm = "model_fit_med.json"
# filenm = "model_fit_unconstr.json"
# filenm = "model_fit_uniform.json"
with open(f"input_files/{filenm}") as f:
    model_fit = json.load(f)


model_fit['param_svd_mean']
param_svd_err = model_fit['param_svd_err']
param_svd_mean = model_fit['param_svd_mean']
rnd_draws = np.random.randn(NDRAW,len(param_svd_err))
pdraws_svd = param_svd_mean + param_svd_err*rnd_draws
pdraws = pdraws_svd.dot(model_fit['Vh_param_svd_proj'])
pdraws[:,0]

array([19385.38162083, 18779.57263294, 17526.34521489, 17250.49843585,
       18807.29734572])

database = thermo.Database('MELTS_v1_0')
Liq = database.get_phase('Liq')

MM3_oxides = pd.Series({
        "SiO2":45.47,
        "TiO2":0.11,
        "Al2O3":4.00,
        "Cr2O3":0.68,
        "Fe2O3":1.0,
        "FeO":6.22,
        "MnO": 0.0,
        "MgO":38.53,
        "CaO":3.59,
        "Na2O":0.31,
        "K2O":0.0,
        "P2O5": 0.0,
        "H2O":  0.0})

Run sims and store results

phs_frac_tables = []
liq_comp_tables = []

for ind in np.arange(NDRAW):

    ipdraw = pdraws[ind]

    Liq.set_param_values(param_names=model_fit['param_names'],
                         param_values=ipdraw)
    sys = magmaforge.System(comp = MM3_oxides,
                            P_bar = 10e3, # bars
                            T_K = 2200, #
                            database=database, # liquid model name
                            )

    sys.crystallize(
          method='equil', # equilibrium crystallization
          T_step=15, # decrease in temperature at each step
          T_final_K = 1550
                  )


    phs_frac_tbl = sys.history.get_phase_frac_table()
    liq_comp_tbl = sys.history.get_phase_comp_table('Liquid')

    phs_frac_tbl = phs_frac_tbl.reset_index().rename(columns={'index':'T_K'})
    liq_comp_tbl = liq_comp_tbl.reset_index().rename(columns={'index':'T_K'})

    #magmaforge.plot.magma_evolution(sys.history)
    phs_frac_tables.append(phs_frac_tbl)
    liq_comp_tables.append(liq_comp_tbl)

def plot_spaghetti_diagram(prop_tables, col_list, color_list, ylbl, alpha=0.5):
    for i in np.arange(len(prop_tables)):
        ifrac_tbl = prop_tables[i]
        ifrac_tbl['T_C'] = ifrac_tbl['T_K']-273.15

        for iphsnm, icolor in zip(col_list, color_list):
            if(i==0):
                ilabel = iphsnm
            else:
                ilabel = None

            sns.lineplot(ifrac_tbl,x='T_C', y=iphsnm, label=ilabel,
                          color=icolor, alpha=alpha)

    plt.ylabel(ylbl)
    plt.legend()

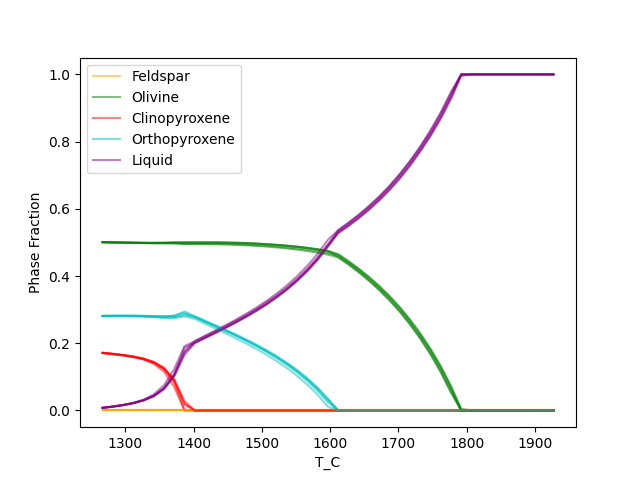

Plot phase fraction evolution

col_list = ['Feldspar','Olivine','Clinopyroxene','Orthopyroxene','Liquid']
color_list = ['orange','g','r','c','purple']
plot_spaghetti_diagram(phs_frac_tables, col_list, color_list, 'Phase Fraction')

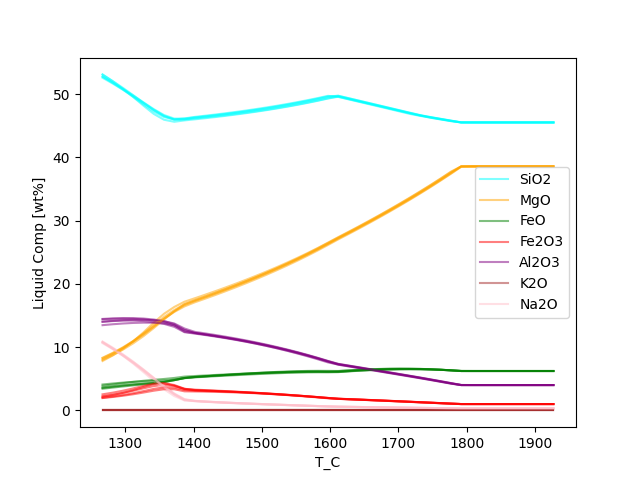

Plot liquid composition evolution

col_list = ['SiO2','MgO','FeO','Fe2O3','Al2O3','K2O','Na2O','H2O']
color_list = ['cyan','orange','green','red','purple','brown','pink']
plot_spaghetti_diagram(liq_comp_tables, col_list, color_list, 'Liquid Comp [wt%]')
