MELTS: Calculate Olivine Control Line#
Extrapolates a melt composition to a more primitive composition under the assumption that only olivine has crystallised from the melt. This calculation might be used for estimating primary melt compositions, or the effect of post-entrapment crystallisation on olivine-hosted melt inclusions.
The calculation uses the rhyoliteMELTS v1.2 model.
Open this code in an executable MyBinder instance (MyBinder links may be slow to load– please be patient!):
Initialization#
Import the necessary packages
from thermoengine import model, magmaforge, redox
from thermoengine.core import chem
import pandas as pd
import numpy as np
from scipy.optimize import root_scalar
import matplotlib.pyplot as plt
Retrieve the MELTS v1.2 database and extract the olivine and liquid models.
db = model.Database("MELTS_v1_2")
liq = db.get_phase('Liq')
olv = db.get_phase('Ol')
Set up the Calculations#
This section sets up the algorithm for incrementally finding the equilibrium olivine composition at the liquidus, adding a small amount of it into the melt, and repeating.
You must run the cells below, but you do not need to change anything inside them to run a calculation.
def calculate_olivine_control_line(
starting_comp : pd.Series,
P_bar : float,
target_Mgn : float,
step_size : float = 0.005
) -> tuple[pd.DataFrame,
pd.DataFrame]:
"""
Calculate an olivine control line, starting at the start composition and
ending when the equilibrium olivine has the target Mgn. The Fe3/tFe ratio
must be set in the starting_comp.
Inputs
------
starting_comp : pd.Series
The starting composition in weight percent (or grams) of oxides
P_bar : float
The pressure in bars
target_Mgn : float
The olivine Mgn at which to terminate the calculation
step_size : float
The moles of olivine to add to the liquid composition at each step
Outputs
-------
pd.DataFrame
The melt compositions at each step on the olivine control line
pd.DataFrame
The olivine compositions at each step on the olivine control line
"""
if 'Fe2O3' not in starting_comp or starting_comp['Fe2O3'] == 0.0:
print("Warning: Fe2O3 set to 0.0")
if 'FeO' not in starting_comp or starting_comp['FeO'] == 0.0:
print("Warning: FeO is set to 0.0")
if target_Mgn > 1 and target_Mgn < 100:
target_Mgn = target_Mgn / 100
elif target_Mgn > 100 or target_Mgn < 0:
assert False, "Bad target Mg number."
start_comp_arr = np.zeros(len(chem.OXIDE_ORDER))
for i, ox in zip(range(len(chem.OXIDE_ORDER)), chem.OXIDE_ORDER):
if ox in starting_comp:
start_comp_arr[i] = starting_comp[ox]
else:
start_comp_arr[i] = 0.0
start_comp_arr = start_comp_arr / np.sum(start_comp_arr) * 100
liq_moles = magmaforge.System.convert_wtoxides_to_liquid_endmems(
starting_comp, liq, oxides=starting_comp.index)
olv_omni_comps = _calc_omni_comps_for_phases(olv, liq)
T, olv_mols = find_liquidus_olivine(P_bar, liq_moles, olv_omni_comps)
Mgn = olv_mols[5]/(olv_mols[1]+olv_mols[5])
MAX_ITER = 1000
iternum = 0
check_phase_sat(T, P_bar, starting_comp)
# Initialise dataframes for results
liq_comps = np.zeros([MAX_ITER, len(chem.OXIDE_ORDER)])
olv_comps = np.zeros([MAX_ITER, olv.endmember_num+1])
liq_comps[0,:] = start_comp_arr
olv_comps[0,:-1] = olv_mols
olv_comps[0,-1] = Mgn
T_seq = [T]
while Mgn < target_Mgn and iternum < MAX_ITER:
liq_moles += step_size * olv_omni_comps.T.dot(olv_mols)
T, olv_mols = find_liquidus_olivine(P_bar, liq_moles, olv_omni_comps, T0=T)
Mgn = olv_mols[5]/(olv_mols[1]+olv_mols[5])
liq_mol_ox = liq.endmember_mol_oxide_comps.T.dot(liq_moles)
liq_wtpt = chem.mol_to_wt_oxide(liq_mol_ox, chem.OXIDE_ORDER)
liq_wtpt = liq_wtpt/np.sum(liq_wtpt) * 100
liq_comps[iternum+1,:] = liq_wtpt
olv_comps[iternum+1,:-1] = olv_mols
olv_comps[iternum+1, -1] = Mgn
T_seq.append(T)
iternum += 1
liq_comps = pd.DataFrame(liq_comps[:iternum+1,:], columns=chem.OXIDE_ORDER, index=T_seq)
olv_comps = pd.DataFrame(olv_comps[:iternum+1,:],
columns=list(olv.endmember_names)+['Mg#'],
index=T_seq)
return liq_comps, olv_comps
def find_liquidus_olivine(P, liq_moles, olv_omni_comps, T0=1500.0):
res = root_scalar(_affncomp_root, x0=T0, args=(P, liq_moles, olv_omni_comps))
assert res.converged, "Something has gone wrong when finding the temperature, check inputs."
T = res.root
affn, comp = get_olv_affncomp_from_liq(T, P, liq_moles, olv_omni_comps)
return T, comp
def _affncomp_root(T, P, liq_moles, omni_comps):
return get_olv_affncomp_from_liq(T, P, liq_moles, omni_comps)[0]
def get_olv_affncomp_from_liq(T, P, liq_moles, omni_comps):
liq_mu = liq.chem_potential(T, P, mol=liq_moles)
olv_mu = omni_comps.dot(liq_mu)
affn, comp = olv.affinity_and_comp(T, P, olv_mu)
return (affn, comp)
def _calc_omni_comps_for_phases(phase, omni_phase):
"""
Calculates the matrix for conversion of phase compositions into
omni_component endmembers.
"""
omni_element_comps = omni_phase.endmember_element_comps
inv_omni_element_comps = np.linalg.pinv(omni_element_comps)
TOL = 1e-12
phs_element_comps = phase.endmember_element_comps
phs_omni_comps = phs_element_comps.dot(inv_omni_element_comps)
phs_omni_comps[np.abs(phs_omni_comps) <= TOL] = 0
return phs_omni_comps
def check_phase_sat(T, P, oxide_wtpt):
sys = magmaforge.System(oxide_wtpt, T_K=T, P_bar=P, database='MELTS_v1_2')
phs_mass = sys._system_calculator._total_mass_of_every_phase
for phs in phs_mass:
if phs not in ['Liquid', 'Olivine'] and phs_mass[phs] > 0.0:
print(f"Warning: {phs} is saturated: {phs_mass[phs]:.2f} wt% present at olvine-saturation temperature.")
User Inputs#
Provide the starting composition of the magma here. You must have already determined the amount of FeO and Fe2O3 in the magma.
oxide_comp = pd.Series({
'SiO2': 48.32,
'TiO2': 0.93,
'Al2O3': 15.99,
'Fe2O3': 0.67,
'FeO': 8.36,
'MnO': 0.16,
'MgO': 10.56,
'CaO': 14.01,
'Na2O': 1.72,
'K2O': 0.05,
'P2O5': 0.03,
'H2O': 0.3,
'CO2': 0.05
})
# Composition of olivine-saturated glass from Kistufell, Iceland (Breddam, 2002)
Provide the pressure of crystallisation and the target Mg# for the equilibrium olivine:
pressure_bar = 1000.0
target_Mgn = 90.0
Run the calculation:
liq_comp, olv_comp = calculate_olivine_control_line(
oxide_comp,
P_bar=1000.0,
target_Mgn=90.0
)
[[1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. ]
[0. 1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. ]
[0. 0. 1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. ]
[0. 0. 0. 1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. ]
[0. 0. 0. 0. 1. 0. 0. 1. 0. 0. 0. 0. 0. 0. 0. 0. ]
[1. 0. 0. 0. 0. 2. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. ]
[0.5 0. 0. 0. 0. 0. 1. 0. 0. 0. 0. 0. 0. 0. 0. 0. ]
[1. 0. 0. 0. 0. 0. 0. 2. 0. 0. 0. 0. 0. 0. 0. 0. ]
[0.5 0. 0. 0. 0. 0. 0. 0. 1. 0. 0. 0. 0. 0. 0. 0. ]
[0.5 0. 0. 0. 0. 0. 0. 0. 0. 1. 0. 0. 0. 0. 0. 0. ]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 1. 0. 0. 0. 0. 0. ]
[1. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 1. 0. 0. 0. 0. ]
[1. 0. 0.5 0. 0. 0. 0. 0. 0. 0. 0. 0. 0.5 0. 0. 0. ]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 3. 0. 0. 1. 0. 0. ]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 1. 0. ]
[0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 0. 1. ]]
(16, 16)
Results#
We can see the results as tables of the liquid and olivine compositions along the extrapolated liquid line of descent:
liq_comp
olv_comp
We can save the tables (which can be downloaded if you are running this in a binder):
liq_comp.to_csv('liquid_compositions.csv')
olv_comp.to_csv('olivine_compositions.csv')

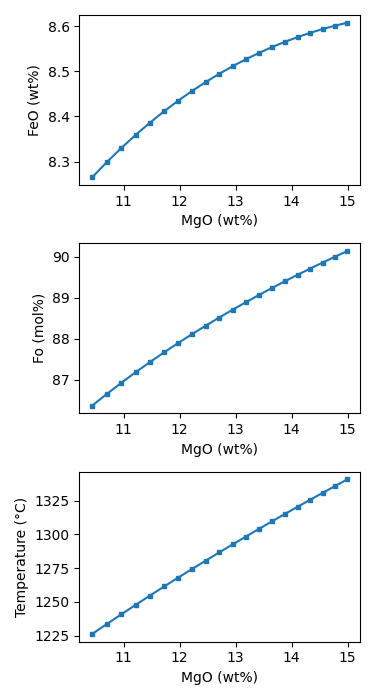

But we can also plot the results:
fig, ax = plt.subplots(3,1, figsize=(3.75, 7))
ax[0].plot(liq_comp['MgO'], liq_comp['FeO'], marker='s', markersize=3)
ax[1].plot(liq_comp['MgO'], olv_comp['Mg#']*100, marker='s', markersize=3)
ax[2].plot(liq_comp['MgO'], liq_comp.index - 273.15, marker='s', markersize=3)
for a in ax:
a.set_xlabel('MgO (wt%)')
ax[0].set_ylabel('FeO (wt%)')
ax[1].set_ylabel('Fo (mol%)')
ax[2].set_ylabel('Temperature (°C)')
fig.tight_layout()
plt.show()
Total running time of the script: (0 minutes 0.306 seconds)
