MagmaForge: Fluid Saturated Crystallization

Demonstrates how to run a model for crystallising magma when H2O is at saturation.

Open this code in an executable MyBinder instance (MyBinder links may be slow to load– please be patient!):

Initialization

Import necessary packages:

import thermoengine
from thermoengine import magmaforge, model

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt

Define a bulk composition:

morb_oxides = pd.Series({
            'SiO2':  48.68,
            'TiO2':   1.01,
            'Al2O3': 17.64,
            'Fe2O3':  0.89,
            'Cr2O3':  0.0425,
            'FeO':    7.59,
            'MgO':    9.10,
            'CaO':   12.45,
            'Na2O':   2.65,
            'K2O':    0.03,
            'P2O5':   0.08,
            'H2O':    0.2,
            },)

Set up fluid-saturated condition for a H2O fluid using  rhyolite-MELTS v1.0

db = 'MELTS_v1_0'
fluid = model.Database(db).get_phase('H2O')

def mu_H2O(t, p, state):
    return fluid.gibbs_energy(t, p)

chempot_constraints = [({'H':2.0,'O':1.0},mu_H2O)]

Set up fluid-saturated conditions for a H2O-CO2 fluid with rhyolite-MELTS v1.2 (uncomment below code and run)

# X_H2O=0.4
# morb_oxides['CO2'] = 0.1
# db = 'MELTS_v1_2'
# fluid = model.Database(db).get_phase('Fl')

# def mu_H2O(t, p, state):
#     return fluid.gibbs_energy(t, p,
#                               mol=np.array([X_H2O, 1-X_H2O]),
#                               deriv={'dmol':1})[0][0]

# def mu_CO2(t, p, state):
#     return fluid.gibbs_energy(t, p,
#                               mol=np.array([X_H2O, 1-X_H2O]),
#                               deriv={'dmol':1})[0][1]

# chempot_constraints = [({'H':2.0,'O':1.0},mu_H2O),
#                        ({'C':1.0,'O':2.0},mu_CO2)]

# db = model.Database(db)
# db.remove_phases(['Fl'])
# db.activate()

System and Calculations

Define system using magmaforge and run the calculation:

sys = magmaforge.System(comp=morb_oxides,
                        # T_C=1350,
                        T_liquidus=True,
                        P_bar=1000.0,
                        logfO2 = ('QFM', -1.0),
                        database=db,
                        chemical_potential_constraints=chempot_constraints,
                        )


sys.crystallize(method='equil',
                T_step=10,
                fix_fO2=True,
                )

/workspaces/ThermoEngineLite/thermoengine/thermoengine/magmaforge/system.py:260: UserWarning: Warning: Setting an fO2 value will redistribute the FeO and Fe2O3 values given.
  warnings.warn('Warning: Setting an fO2 value will redistribute the FeO and Fe2O3 values given.')
/workspaces/ThermoEngineLite/thermoengine/thermoengine/magmaforge/system.py:138: UserWarning: Applying chemical potential constraints is in prototype and may not behave as expected.
  warnings.warn("Applying chemical potential constraints is in prototype and may not behave as expected.")
/workspaces/ThermoEngineLite/thermoengine/thermoengine/magmaforge/system.py:1009: UserWarning: Warning: Unsuccessful cooling step ended equilibrium calculation.
  warnings.warn("Warning: Unsuccessful cooling step ended equilibrium calculation.")

<thermoengine.magmaforge.system.System object at 0xffff79923100>

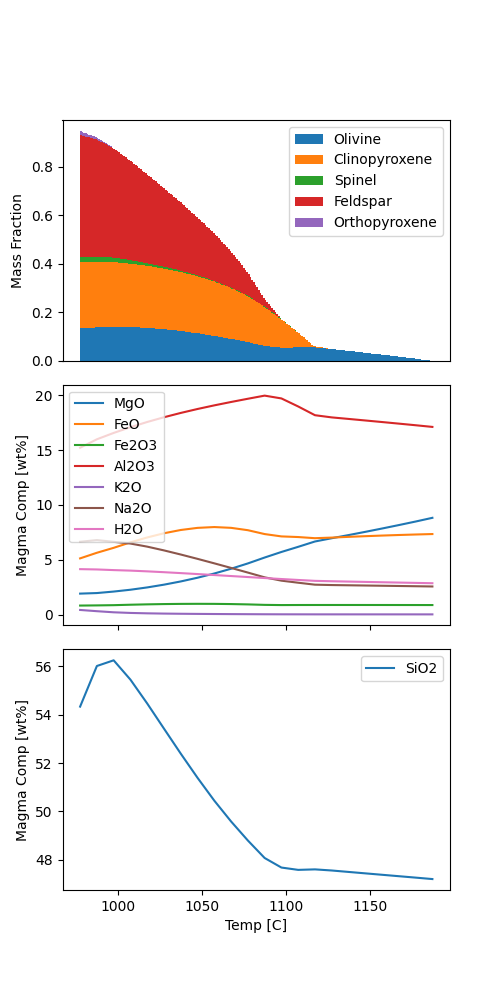

Plot results

magmaforge.plot.magma_evolution(sys.history)
